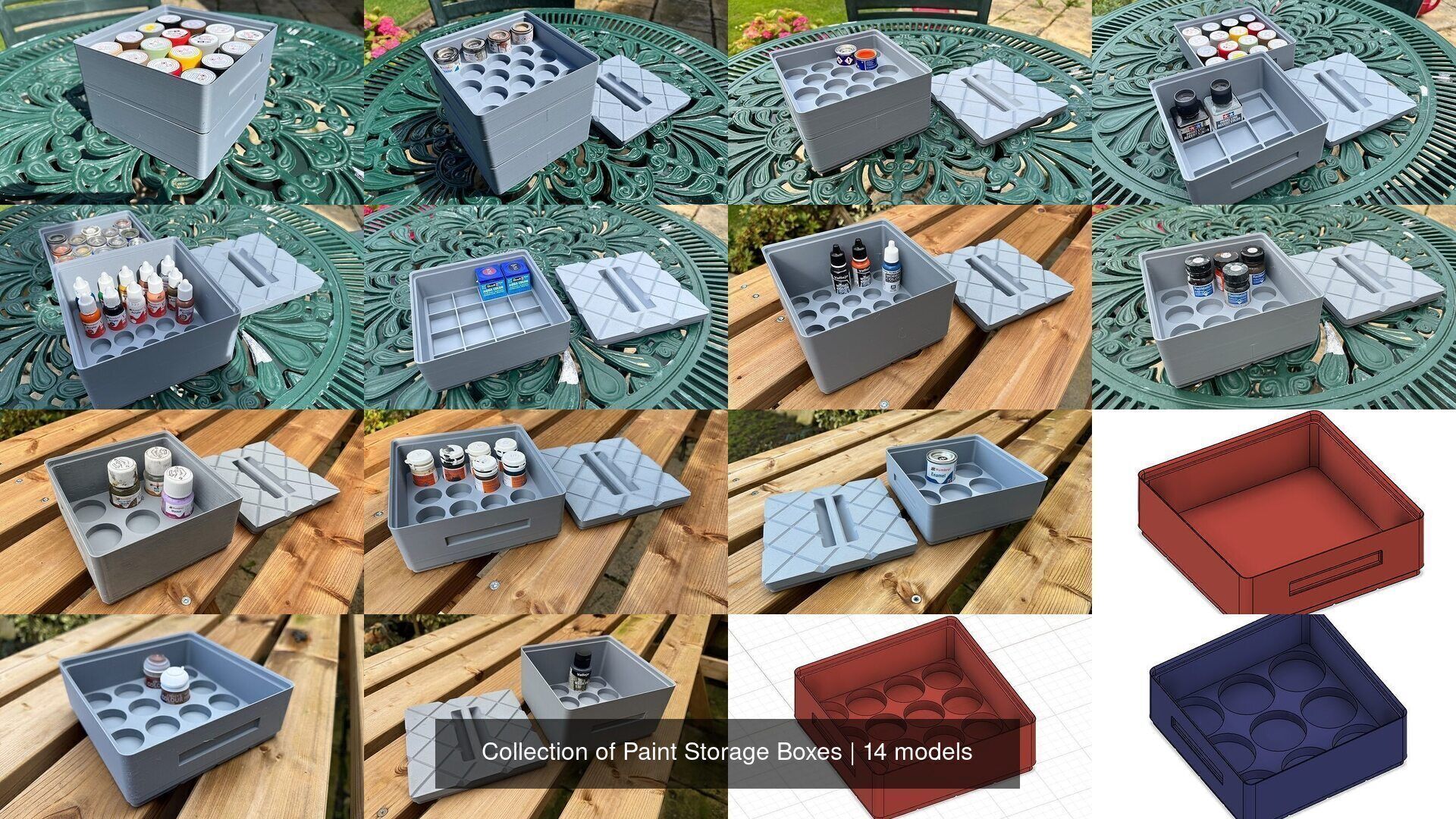

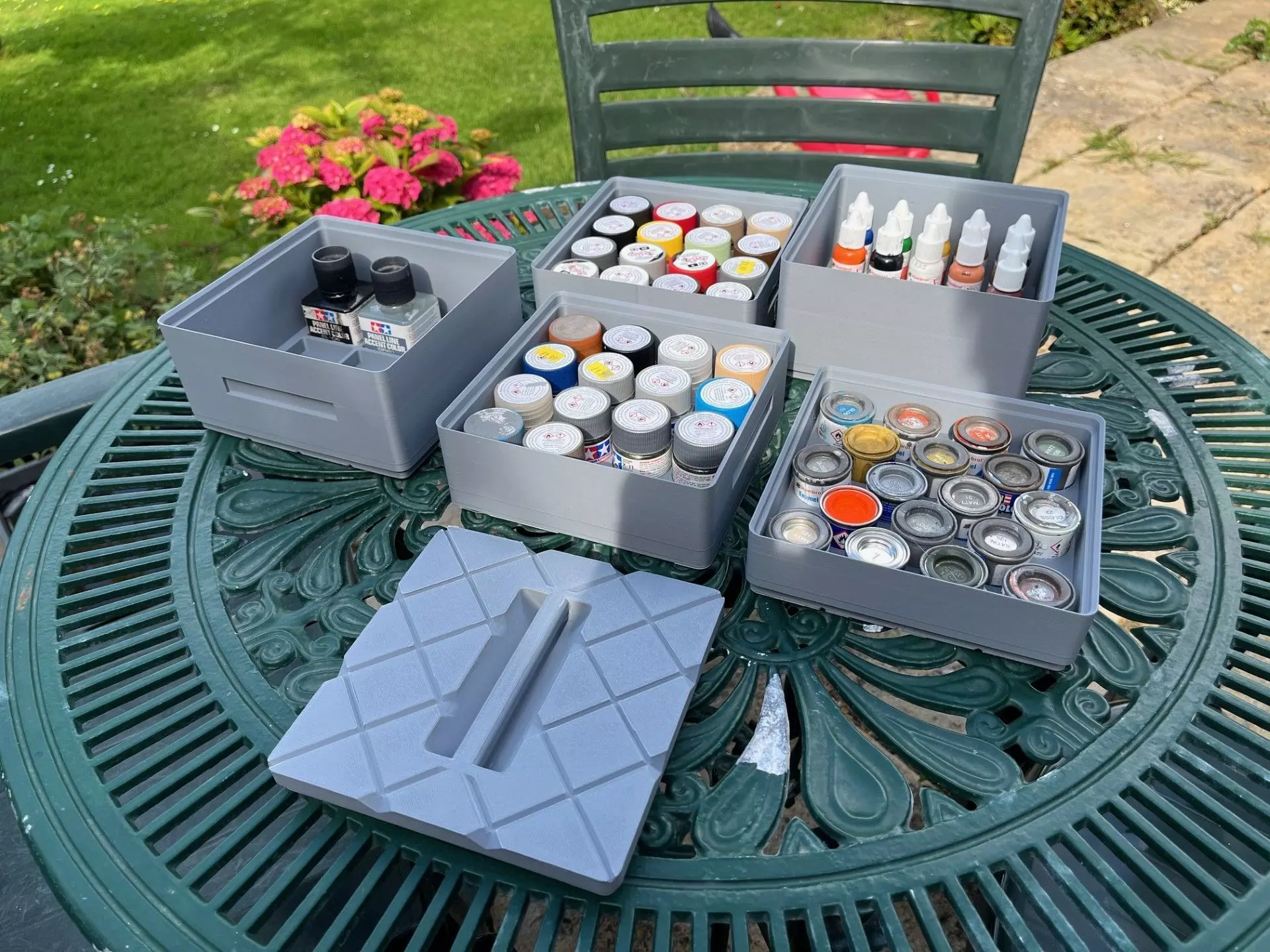

Collection of Paint Storage Boxes

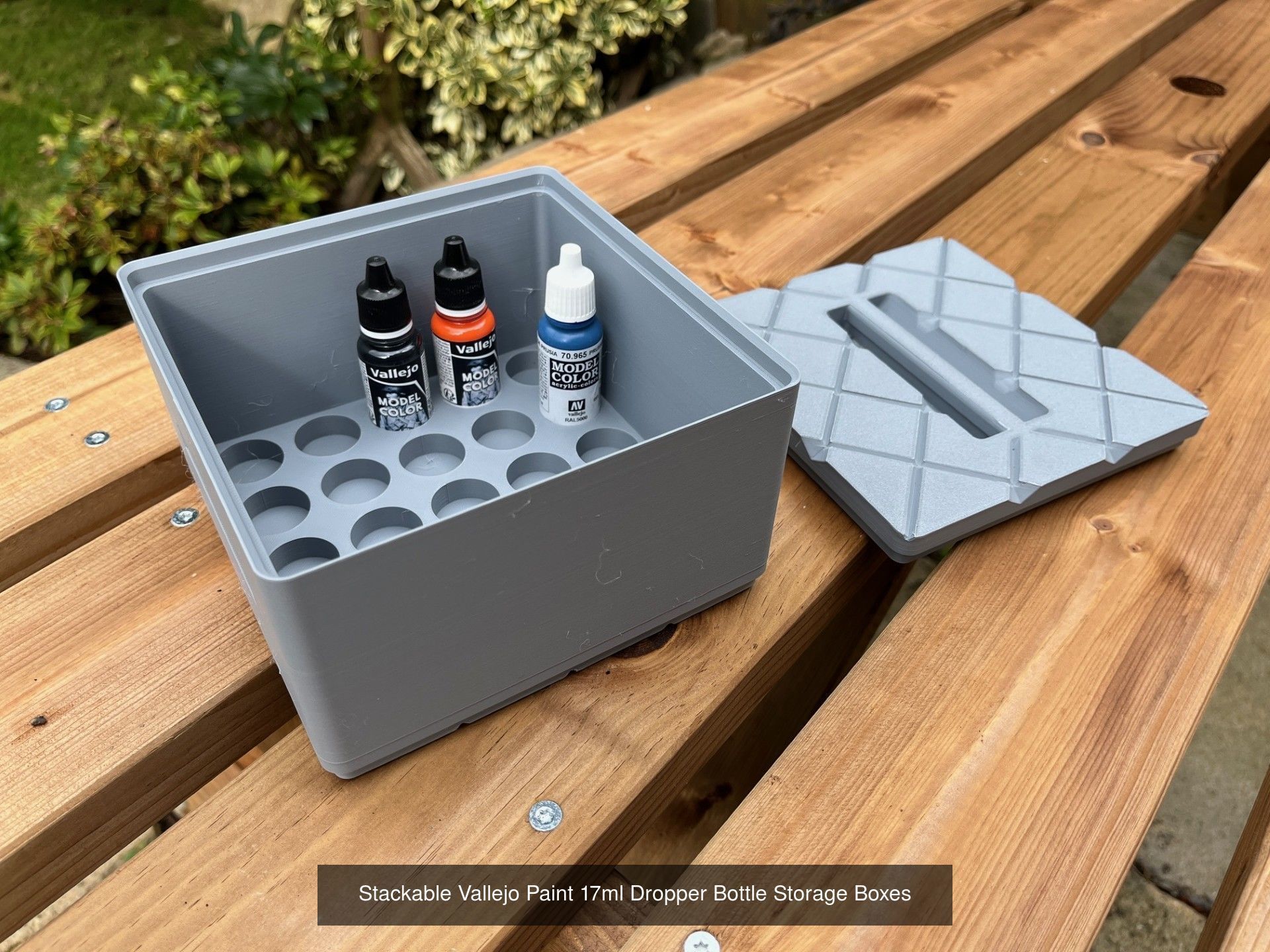

This is a collection of designs that all stack together for different model paint manufactures such as Tamiya, Revell, Humbrol, Vallejo, and RailMatch

At home, I have a range of modeling paints that I use and they are all roughly stored in a draw, when I bought a FDM printer I thought about these designs to create boxes to help store paints from different paint manufacturers that all fit together.

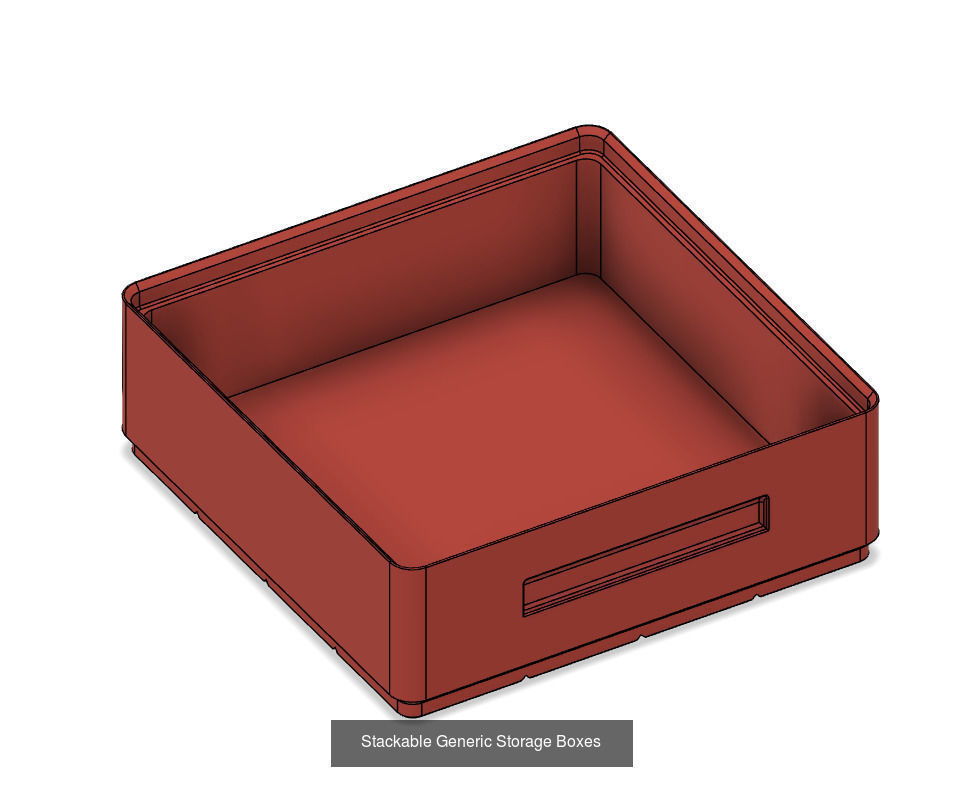

The idea was to create a universal tray for each type of paint that can be stored on top of each other. The size of the tray has been designed to be 160mm x 160mm and will therefore fit on most FDM printers. The lid has also been designed to be printed inverted so the build plate pattern will be on top of the lid enhancing to look.The chequered effect on the base and the top of the lid also helps with reducing the chance of warping when printing.

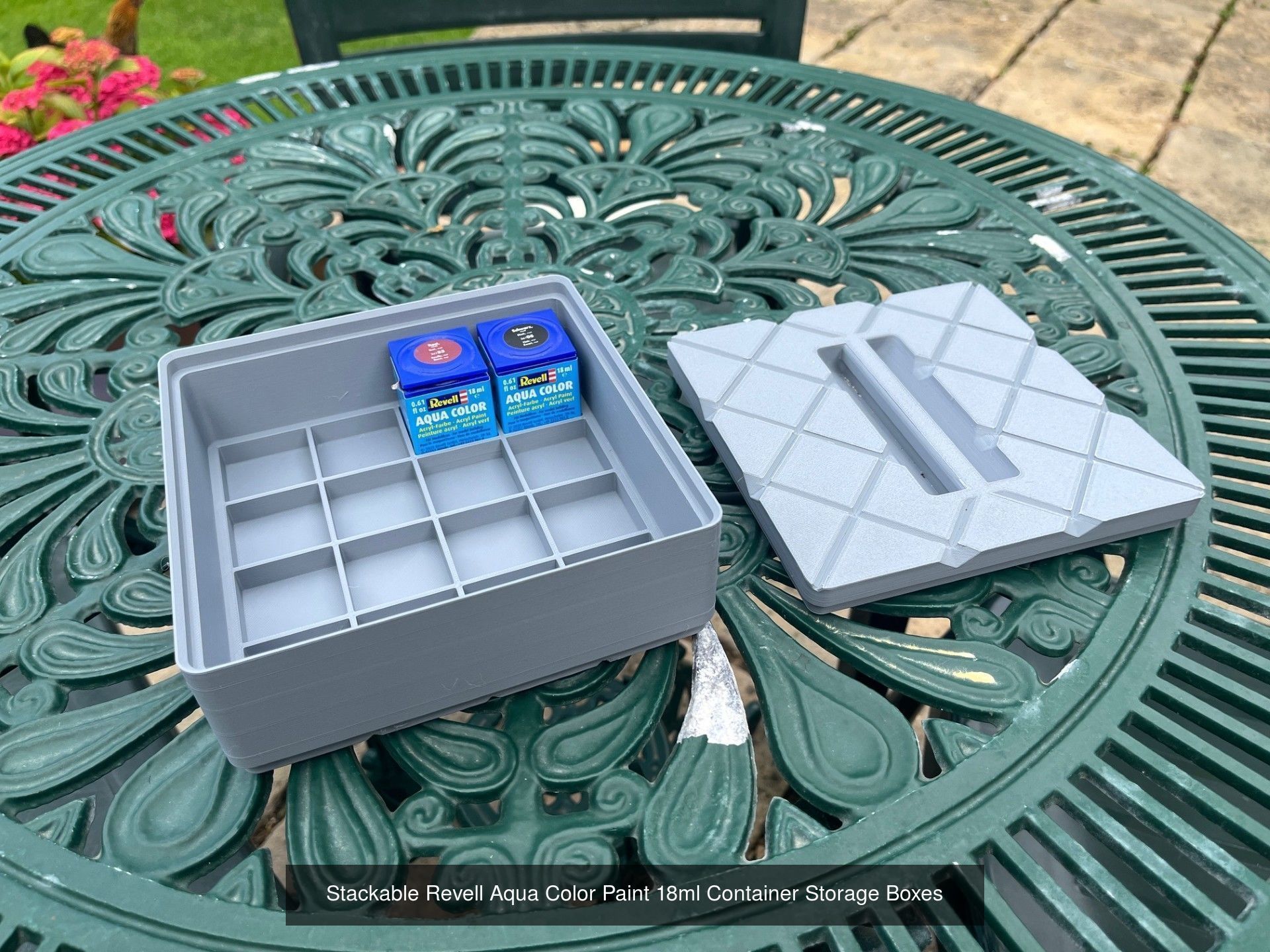

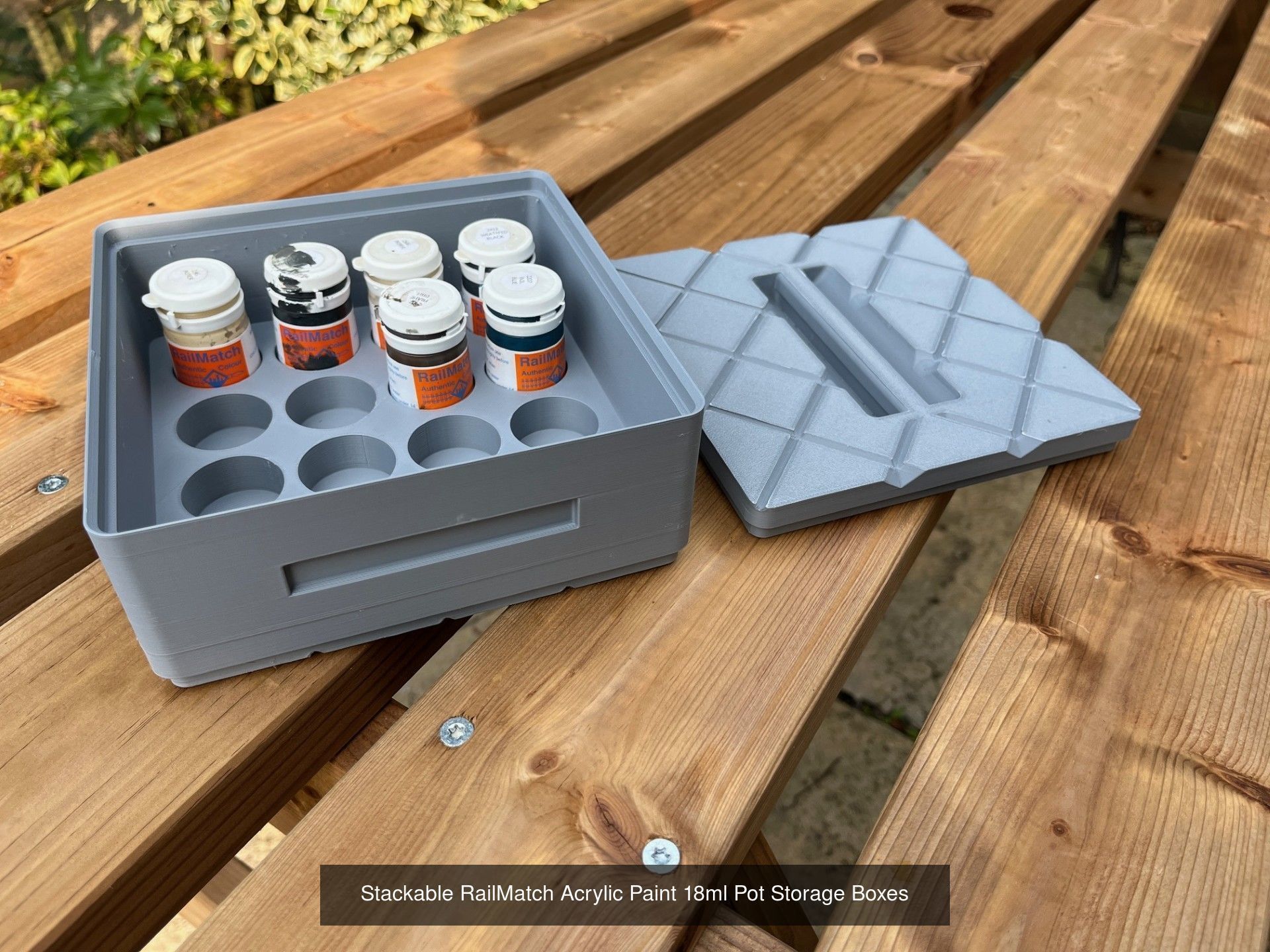

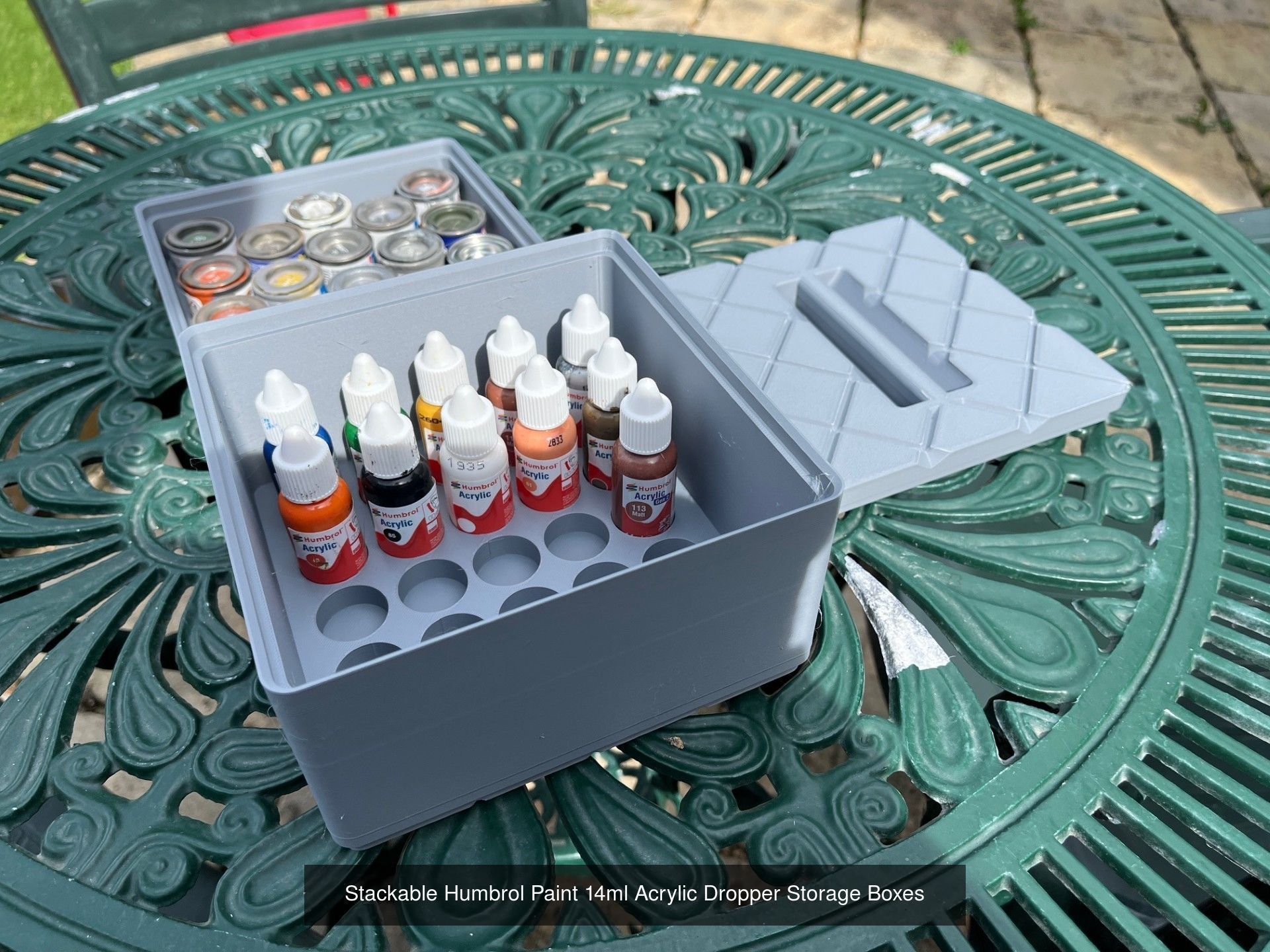

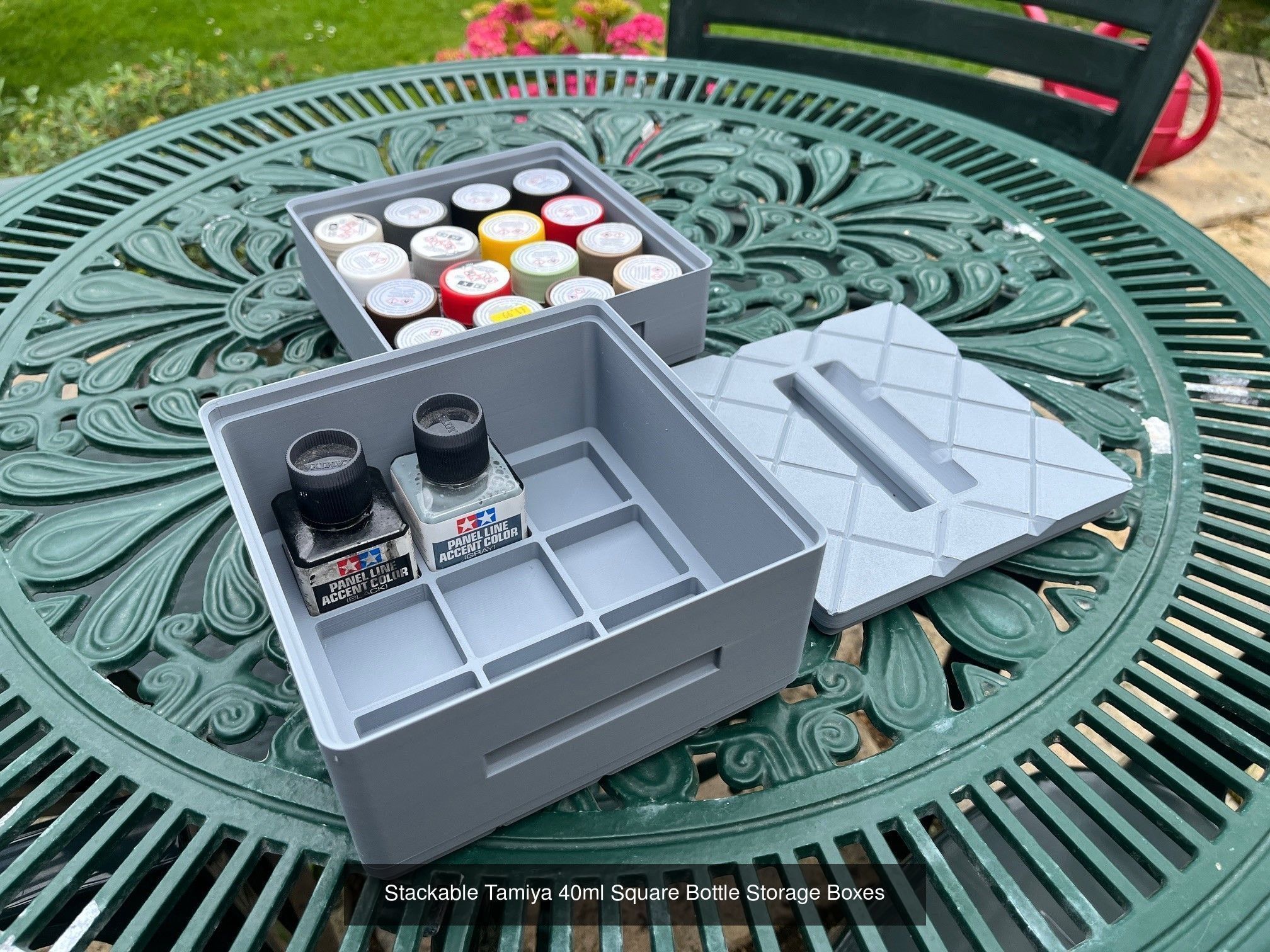

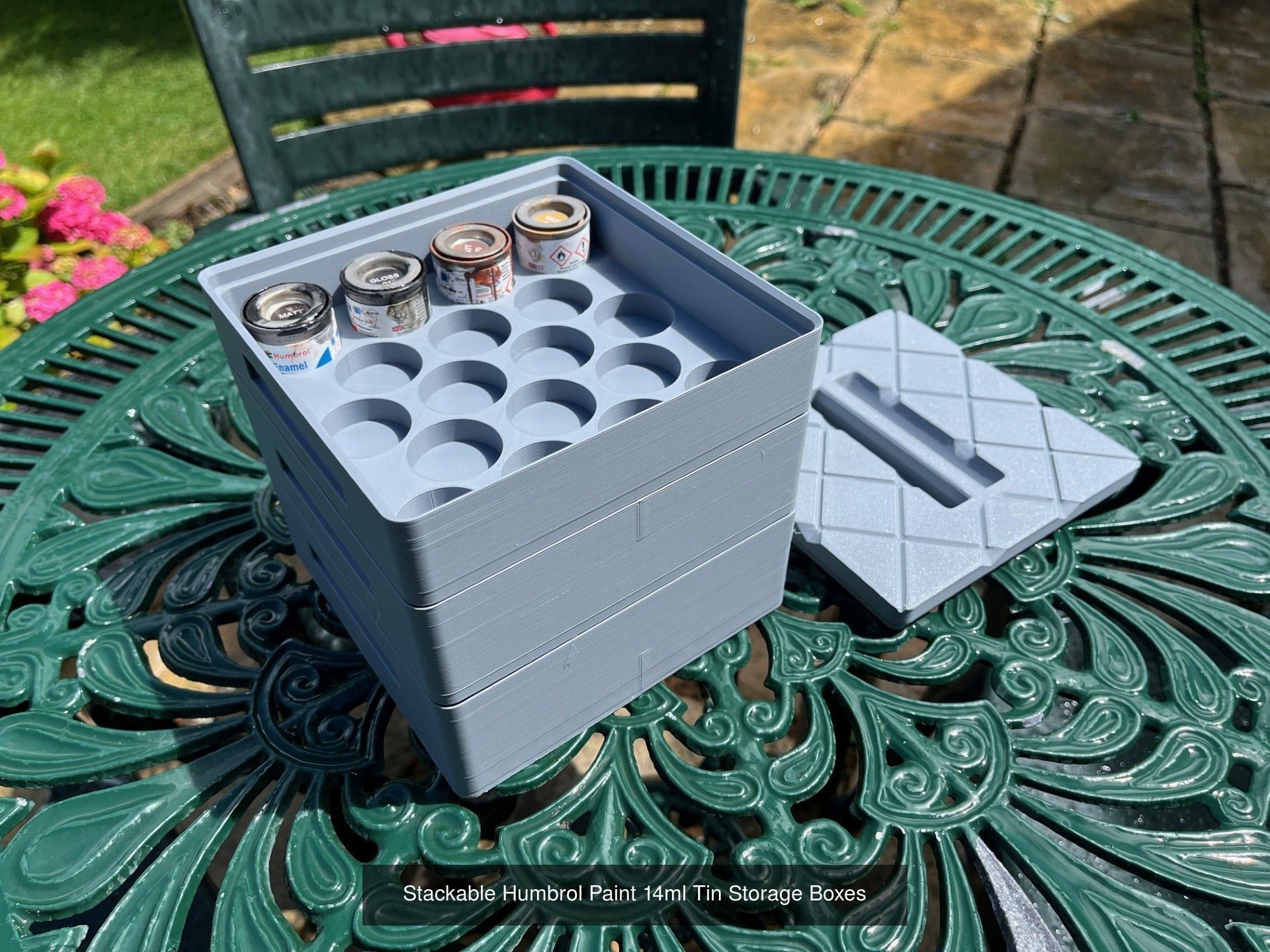

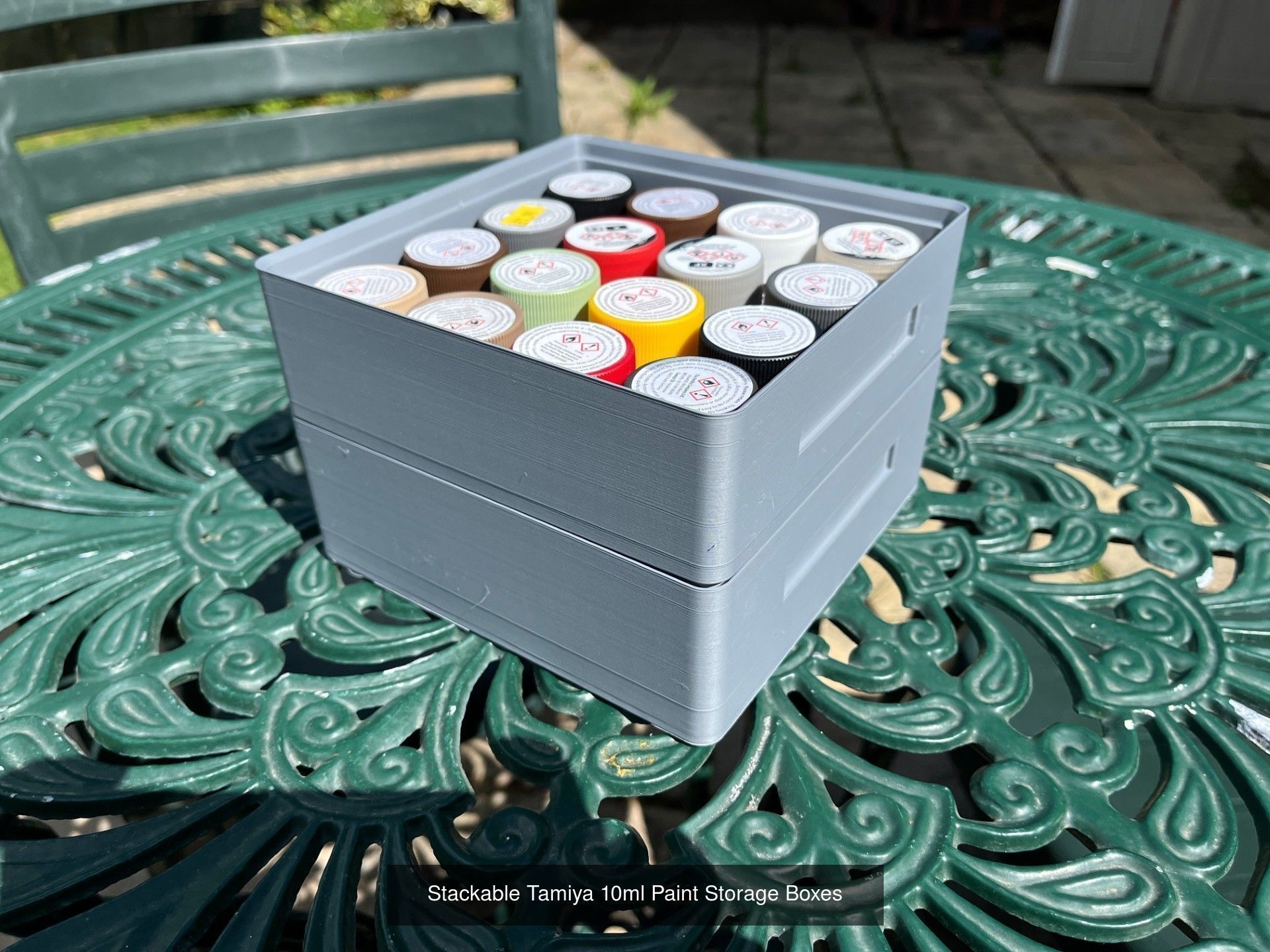

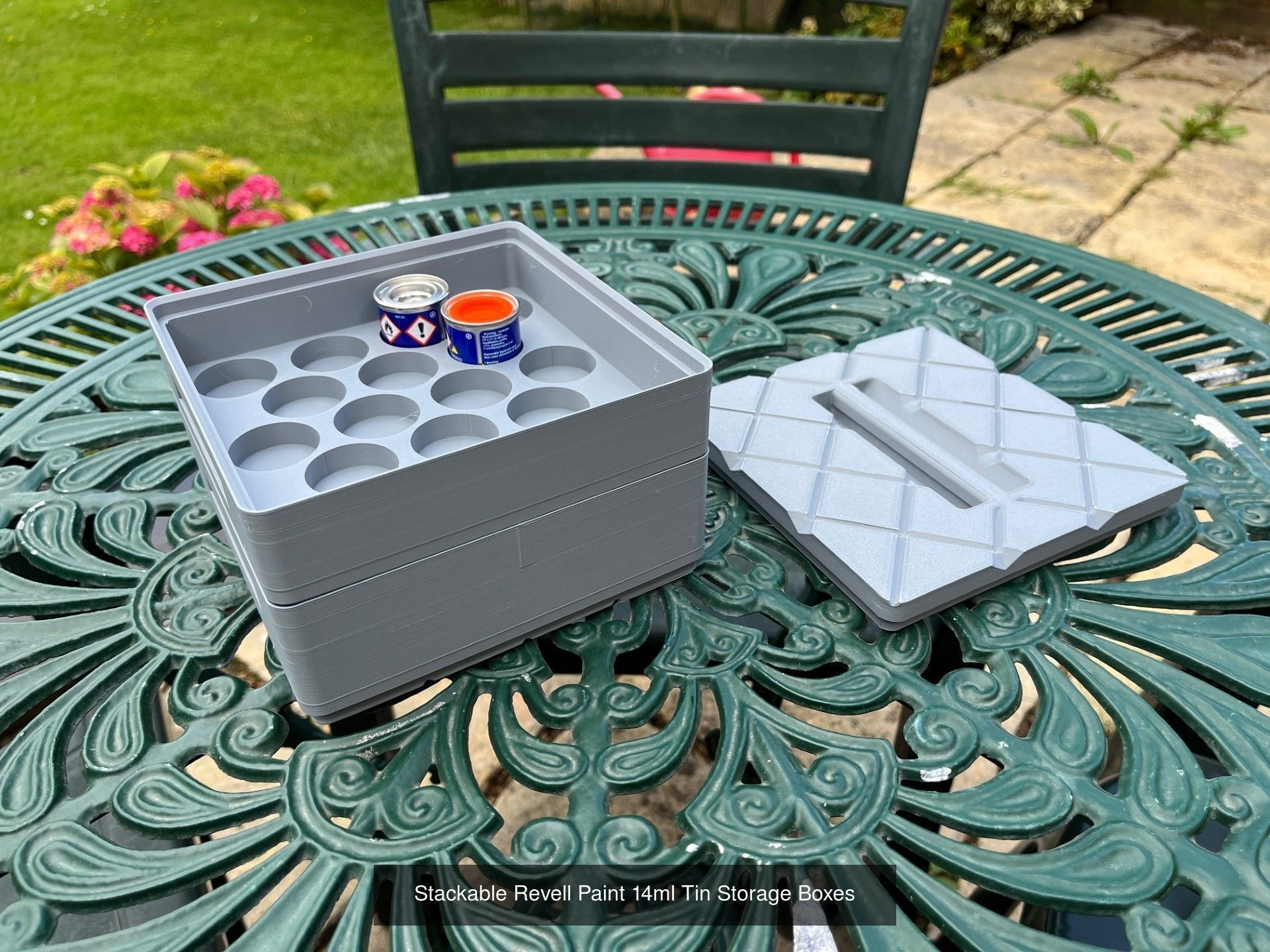

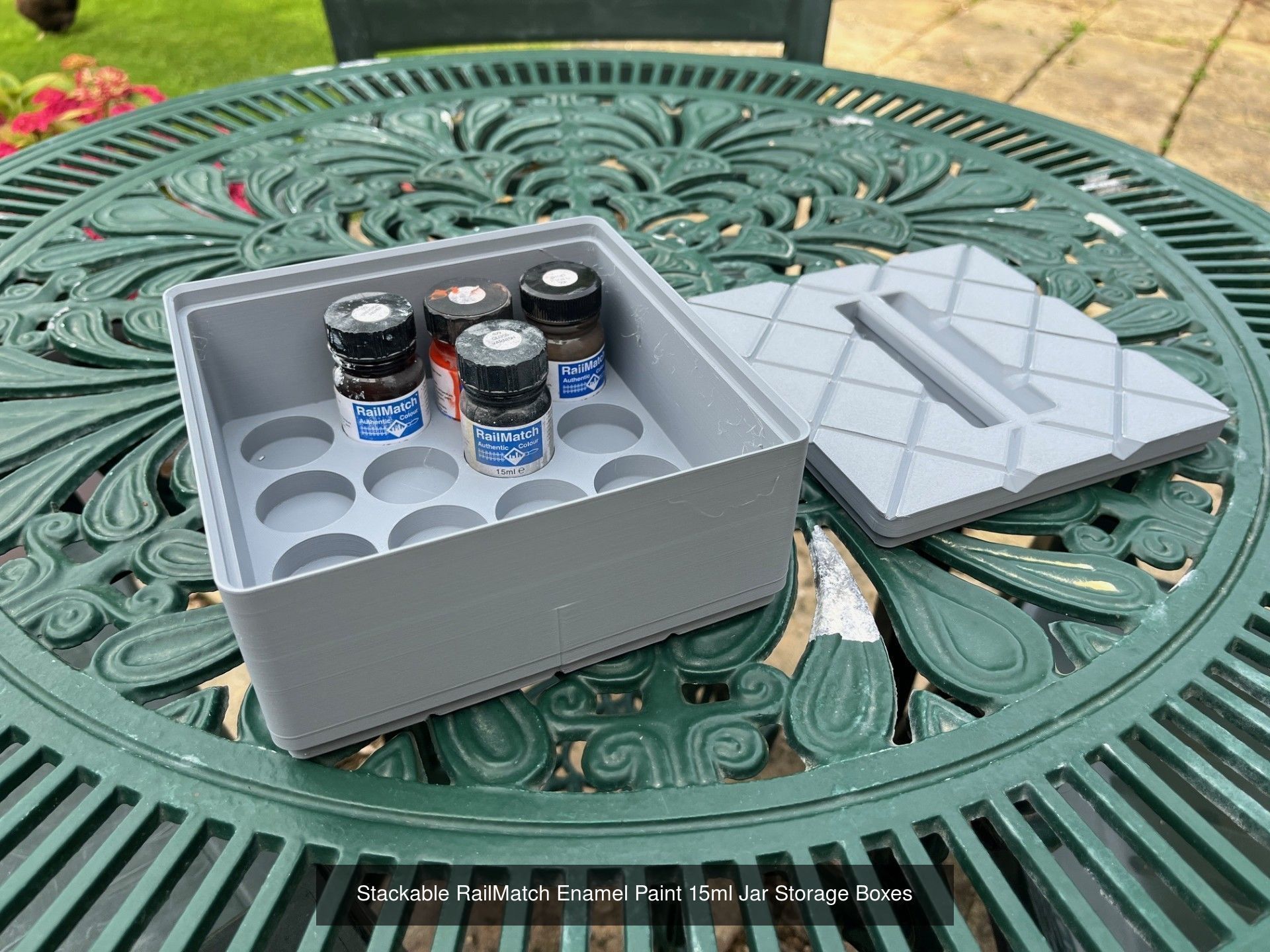

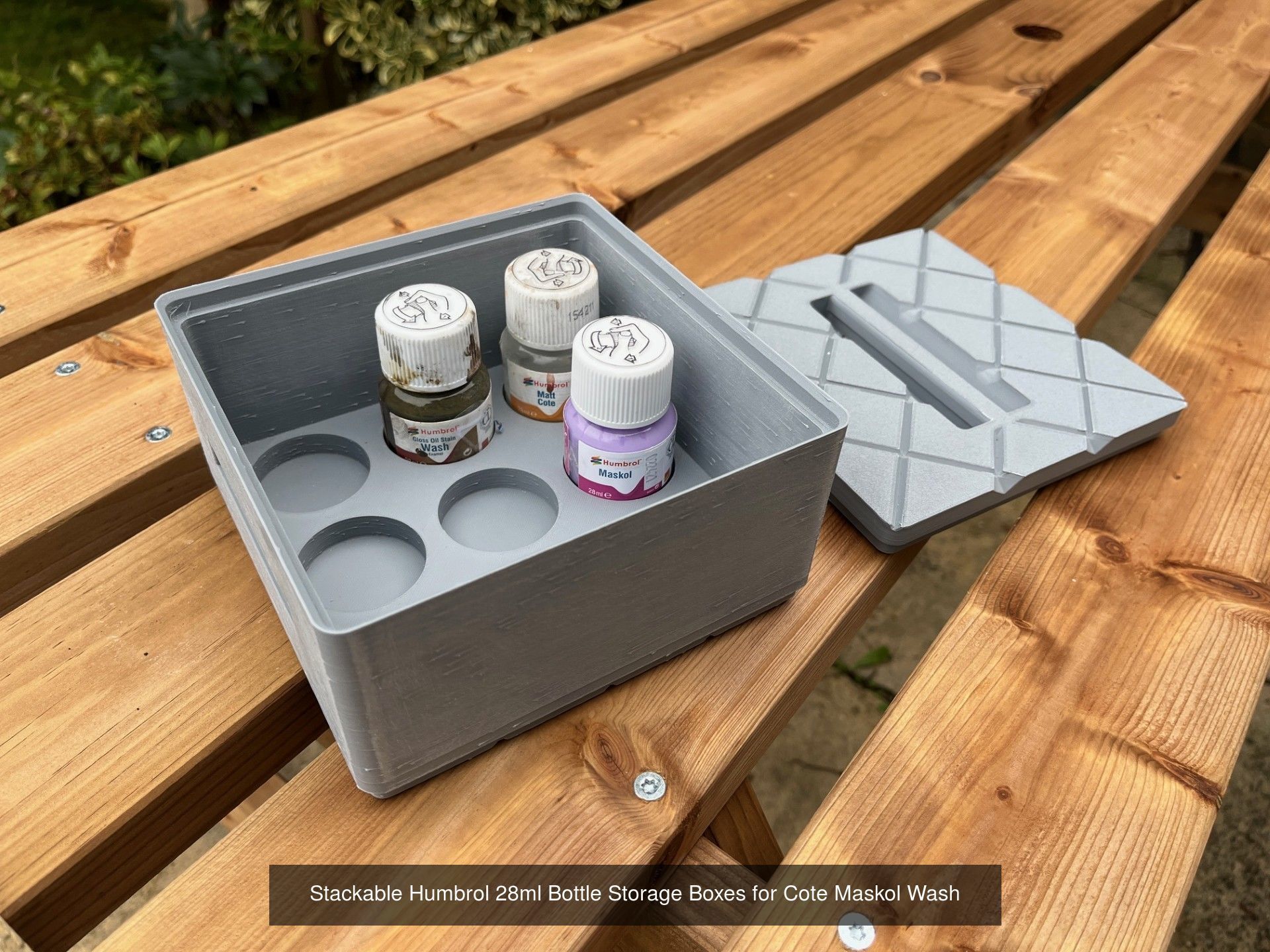

Individual files can be found:Tamiya 10ml Jar Storage Box https://www.cgtrader.com/3d-print-models/hobby-diy/hand-tools/stackable-tamiya-paint-storage-boxesTamiya 40ml Square Bottle Storage Box https://www.cgtrader.com/3d-print-models/hobby-diy/other/stackable-tamiya-40ml-square-bottle-storage-boxesHumbrol 14ml Tin Storage Box https://www.cgtrader.com/3d-print-models/hobby-diy/other/stackable-humbrol-paint-14ml-tin-storage-boxesHumbrol 14ml Dropper Bottle Storage Box https://www.cgtrader.com/3d-print-models/hobby-diy/other/stackable-humbrol-paint-14ml-acrylic-dropper-storage-boxesHumbrol 28ml Bottle Storage Box https://www.cgtrader.com/3d-print-models/hobby-diy/other/stackable-humbrol-28ml-bottle-storage-boxes-for-cote-maskol-washRevell 14ml Tin Storage Box https://www.cgtrader.com/3d-print-models/hobby-diy/hand-tools/stackable-revell-paint-14ml-tin-storage-boxesRevell 18ml Aqua Color Storage Box https://www.cgtrader.com/3d-print-models/hobby-diy/other/stackable-revell-aqua-color-paint-18ml-container-storage-boxesRailMatch 15ml Enamel Storage Box https://www.cgtrader.com/3d-print-models/games-toys/game-accessories/stackable-railmatch-enamel-paint-15ml-jar-storage-boxesRailMatch 18ml Acrylic Storage Box https://www.cgtrader.com/3d-print-models/hobby-diy/other/stackable-railmatch-acrylic-paint-18ml-pot-storage-boxesVallejo 17ml Dropper Bottle Storage Box https://www.cgtrader.com/3d-print-models/miniatures/other/stackable-vallejo-paint-17ml-dropper-bottle-storage-boxesThe examples in the pictures were printed on a Bambu Labs A1 FDM Printer (0.4mm Nozzle, 0.2mm layer height).This design is best printed on an FDM printer (filament).

I recommend 3DLAC Spray to help secure the print to the print bed whilst printing, it also helps release the print after printing has finished.https://amzn.to/4cxPybm (Amazon)
